Script Files
137
7
7.1
Script Files
The program ChipProgUSB can execute so-called script files in a way similar to how DOS executes
the batch files. Use of script files is to automate usage of the ChipProg Console window or other
special windows generated by the script itself, including displaying graphical data in special windows;
to create user's custom menus, etc. The script language is similar to C program language; almost all
C constructions are supported, except for structures, conjunctives and pointers. There are also many
built-in functions available, such as printf(), sin() and strcpy(). The extension of script source file is .
CMD .
When the ChipProgUSB program starts, it searches for the script with the reserved name START.CMD . So, if
you wish the ChipProgUSB program would automatically perform some operations immediately after you
launch the program, you can create a special script. The ChipProgUSB program begins searching for the
START.CMD in the current directory on the disc, then it searches for this script in the directory where the
ChipProgUSB.exe file resides. If the START.CMD is not located then a default ChipProg shell will open.
The scrips controls and associated dialogs and windows are concentrated under the Script menu .
The major dialog that controls scripts is the .
See also:
Simple example of a script file
How to write a script file
How to start a script file
How to debug a script file
Description of Script Language
Script Language Built-in Functions
Script Language Built-in Variables
Difference Between the Script Language and the C Language
Alphabetical List of Script Language Built-in Functions and Variables

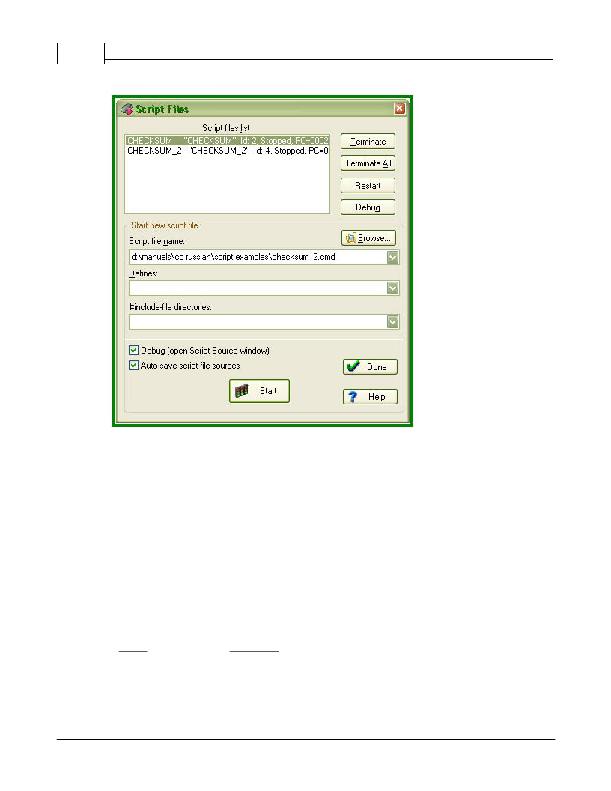

The Script Files Dialog
This dialog is used for controlling the , it allows to start, stop and debug scripts.
? 2010 Phyton, Inc. Microsystems and Development Tools
